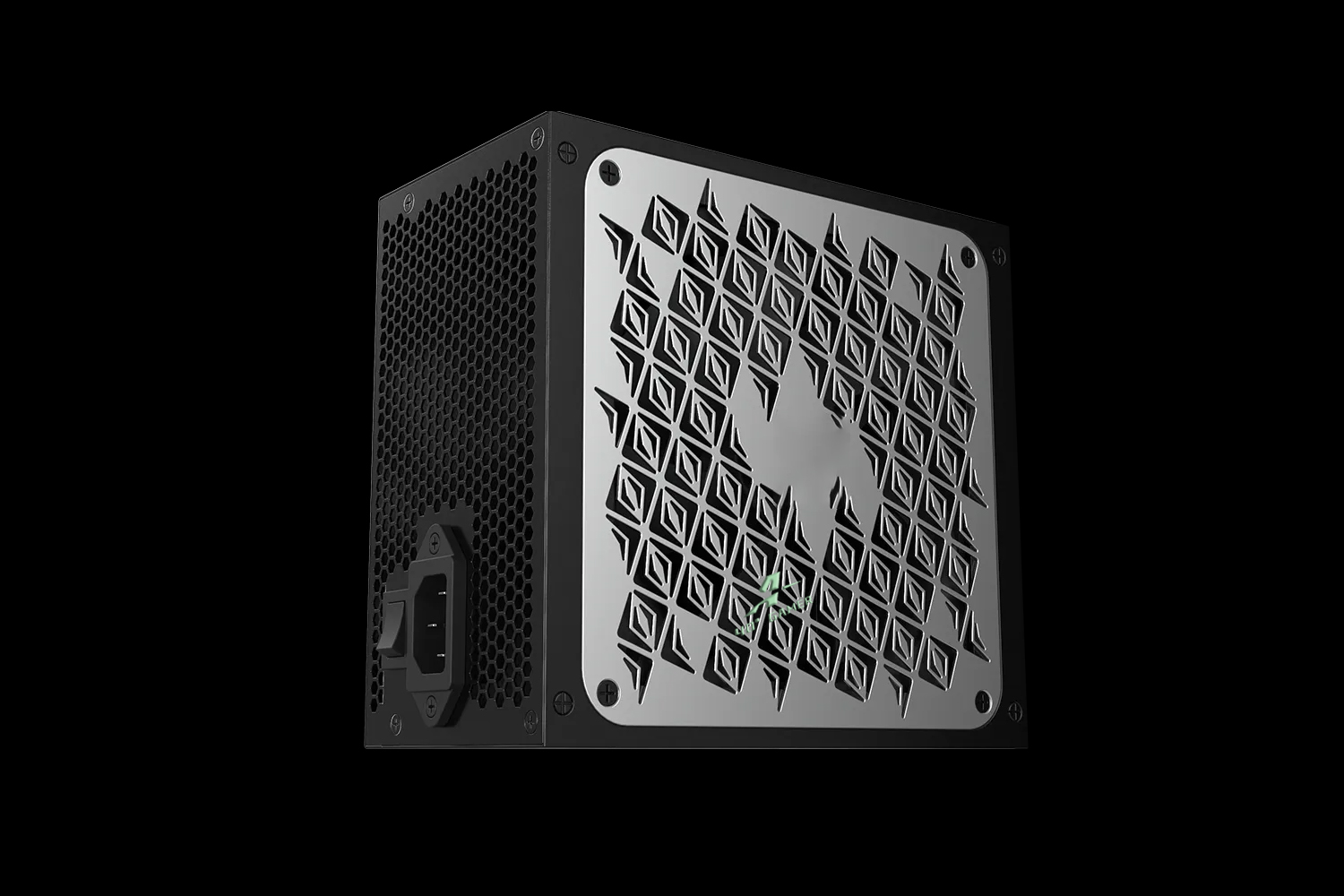

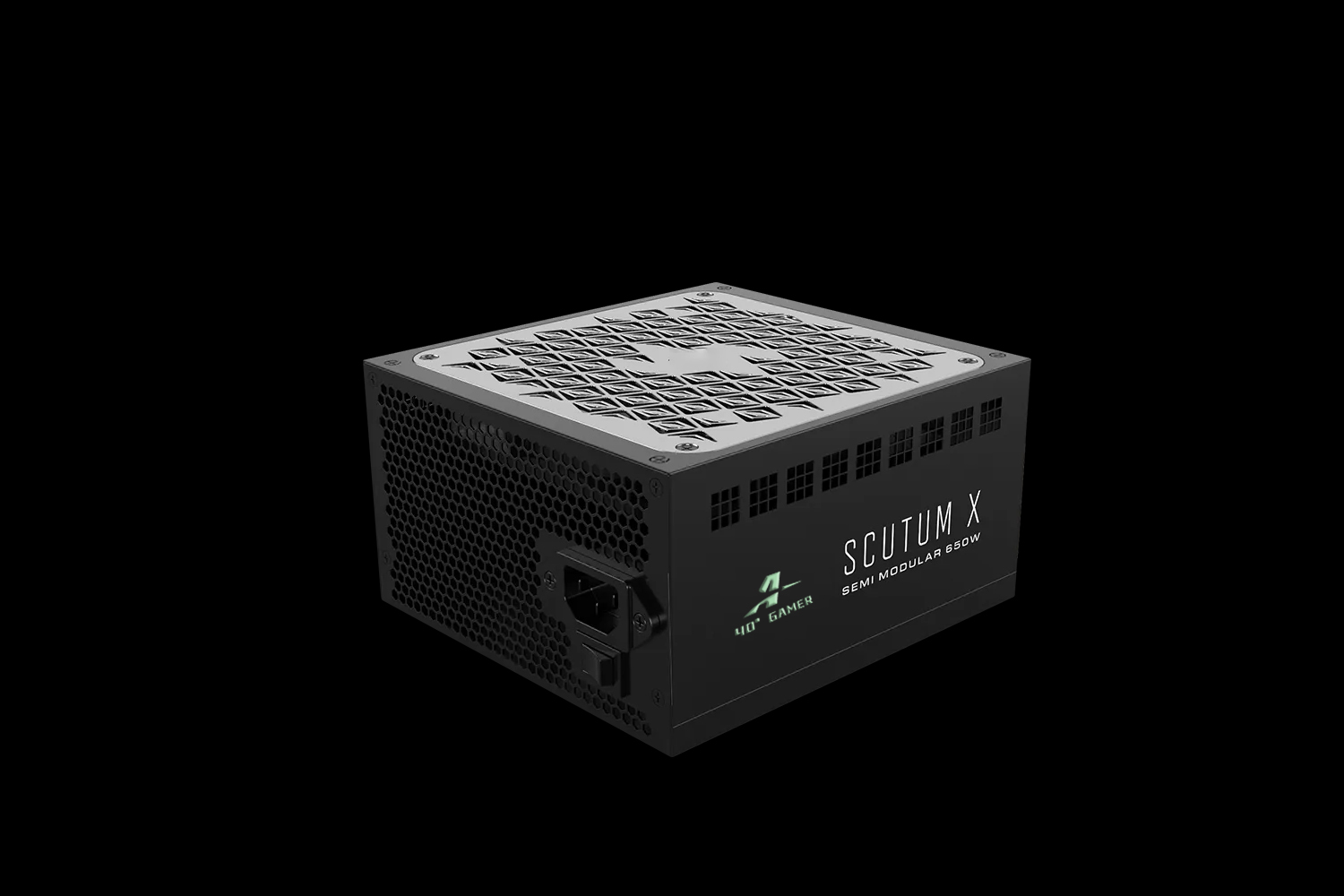

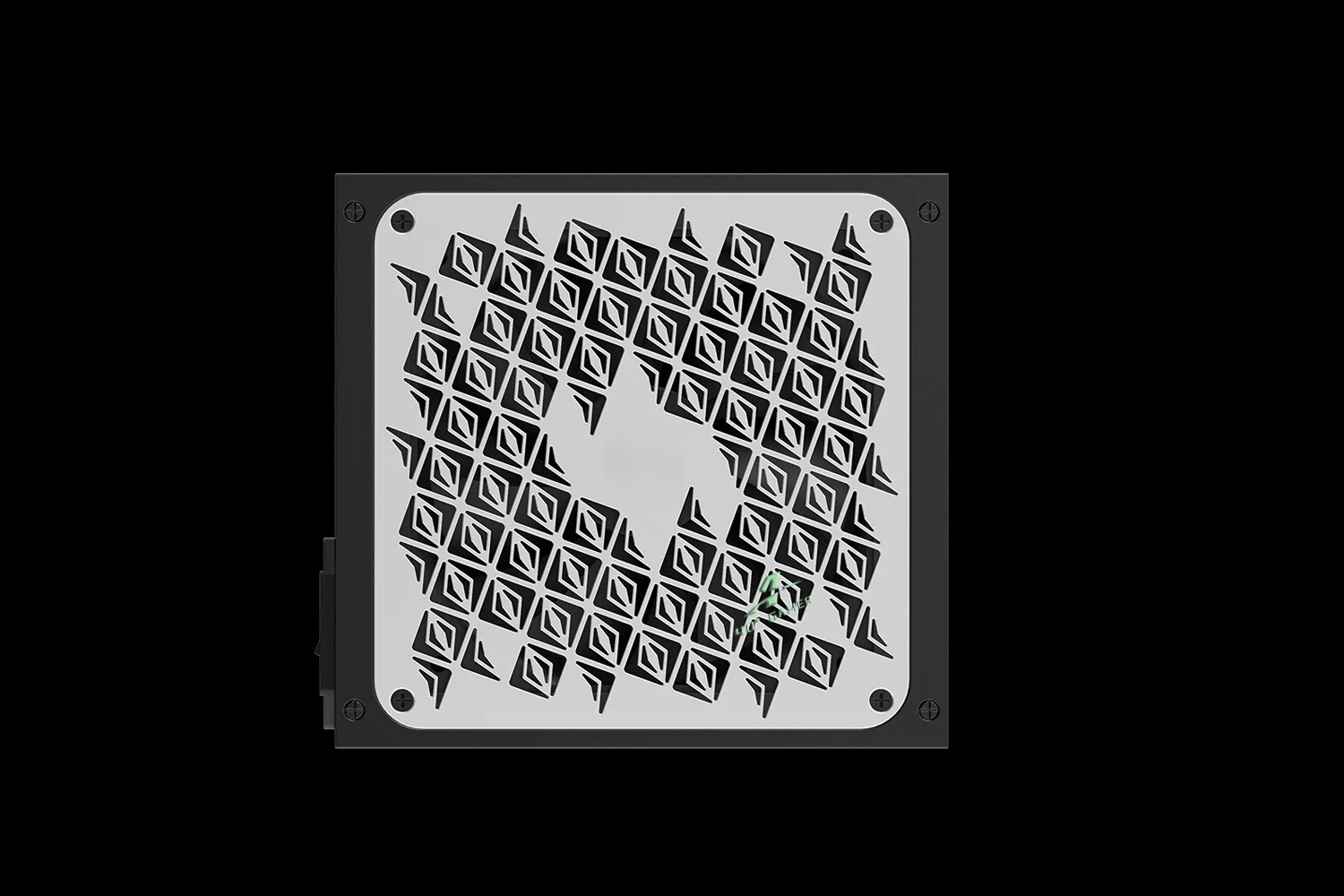

SCUTUM X 650W》650W, 80 Plus Bronze Certified, Fully Modular Power Supply

RRP：
  • Fully modular, so you only connect the cables your system needs.
  • Triple EPS12V connectors for full compatibility with modern graphics cards and motherboards.
  • A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load.
  • Zero RPM fan mode for near-silent operation at low to medium loads.
  • Industrial-grade, 105°C-rated capacitors deliver solid electrical performance and reliability.

TECH SPECS

MODEL

SCUTUM X 650W

Dimensions

153mm x 81mm x 160mm

Format

ATX

Weight

1.45Kg

Ports and interfaces

Power supply for motherboard: 20+4 pin ATX, Length 550mm

EPS Power Connector (8-pin), Length 680mm

PCI Express power connectors (6+2 pin): 2, Length 500mm

SATA power connectors: 5, Length 450mm

Power connectors (4 pin) peripheral (Molex): 2, Length 450mm

Additional S4P connector (FLOPPY)

Wiring Type

Full modular

Protections

Over Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP)

80 PLUS Certification

80+ Bronze (85% Efficiency)

Cooling

Fan diameter: 14 cm

Number of fans: 1 Fan

Fan Location: Top

Cooling Type: Active

Included Contents

SCUTUM X (1)

QR Manual (1)

Power cable (1)

Installation screws (4)
