Fully modular, so you only connect the cables your system needs.
Triple EPS12V connectors for full compatibility with modern graphics cards and motherboards.

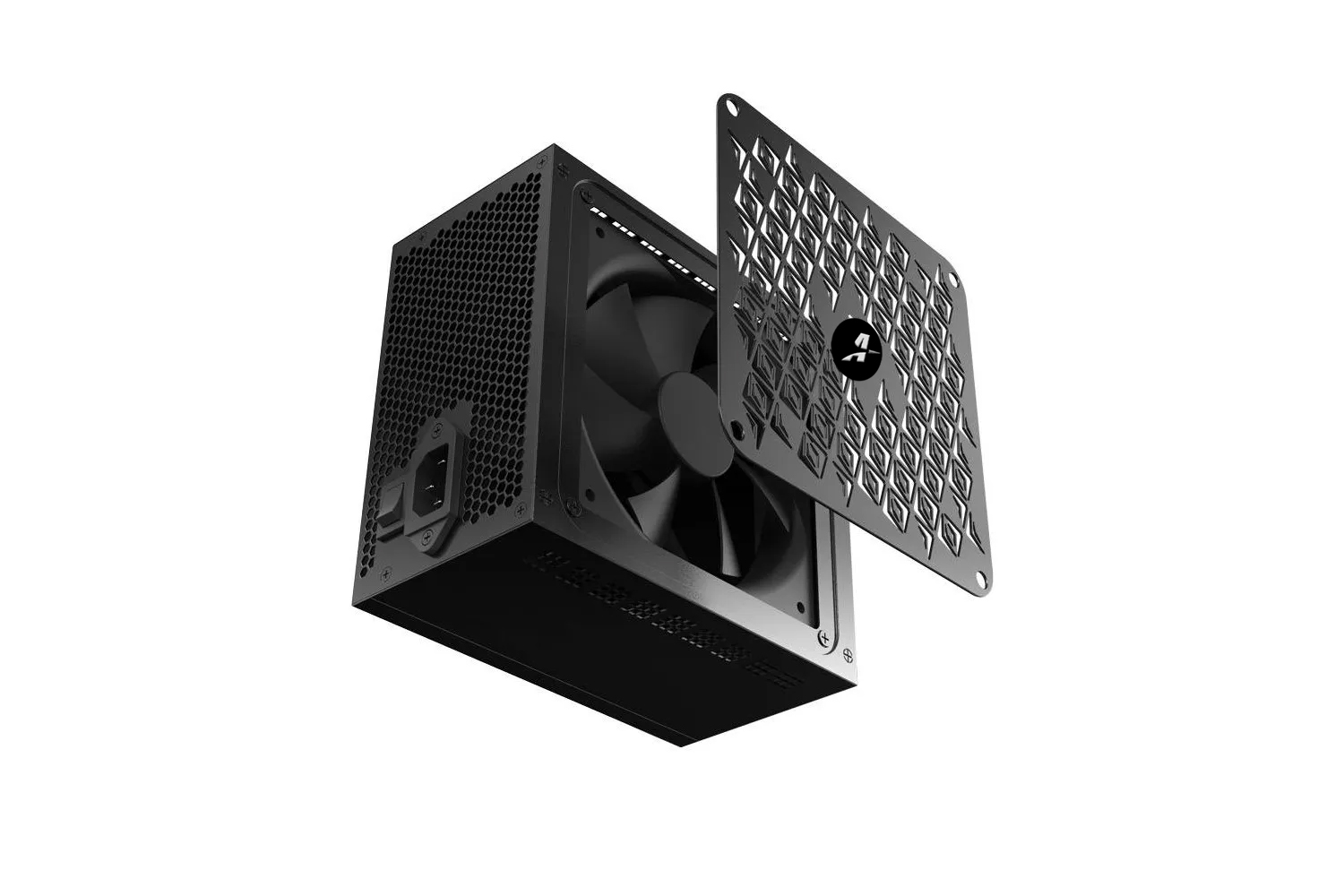

A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load.
Zero RPM fan mode for near-silent operation at low to medium loads.
Industrial-grade, 105°C-rated capacitors deliver solid electrical performance and reliability.
|
MODEL
|
SCUTUM X 850W
|
|
Dimensions
|
153mm x 81mm x 160mm
|
|
Format
|
ATX
|
|
Weight
|
1.65Kg
|
|
Ports and interfaces
|
Power supply for motherboard: 20+4 pin ATX, Length 550mm
|
|
EPS power connector (8-pin), Length 680mm
|
|
PCI Express power connectors (6+2 pin): 2, Length 500mm
|
|
SATA power connectors: 5, Length 450mm
|
|
Power connectors (4 pin) peripherals (Molex): 2, Length 450mm
|
|
Additional S4P connector (FLOPPY)
|
|
Wiring Type
|
Full Modular
|
|
Protections
|
Over Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP)
|
|
80 PLUS Certification
|
80+ Bronze (85% Efficiency)
|
|
Cooling
|
Fan diameter: 14 cm
|
|
Number of fans: 1 Fan
|
|
Fan Location: Top
|
|
Cooling Type: Active
|
|
Included Contents
|
SCUTUM X (1)
|
|
QR Manual (1)
|
|
Power cable (1)
|
|
Installation screws (4)
|

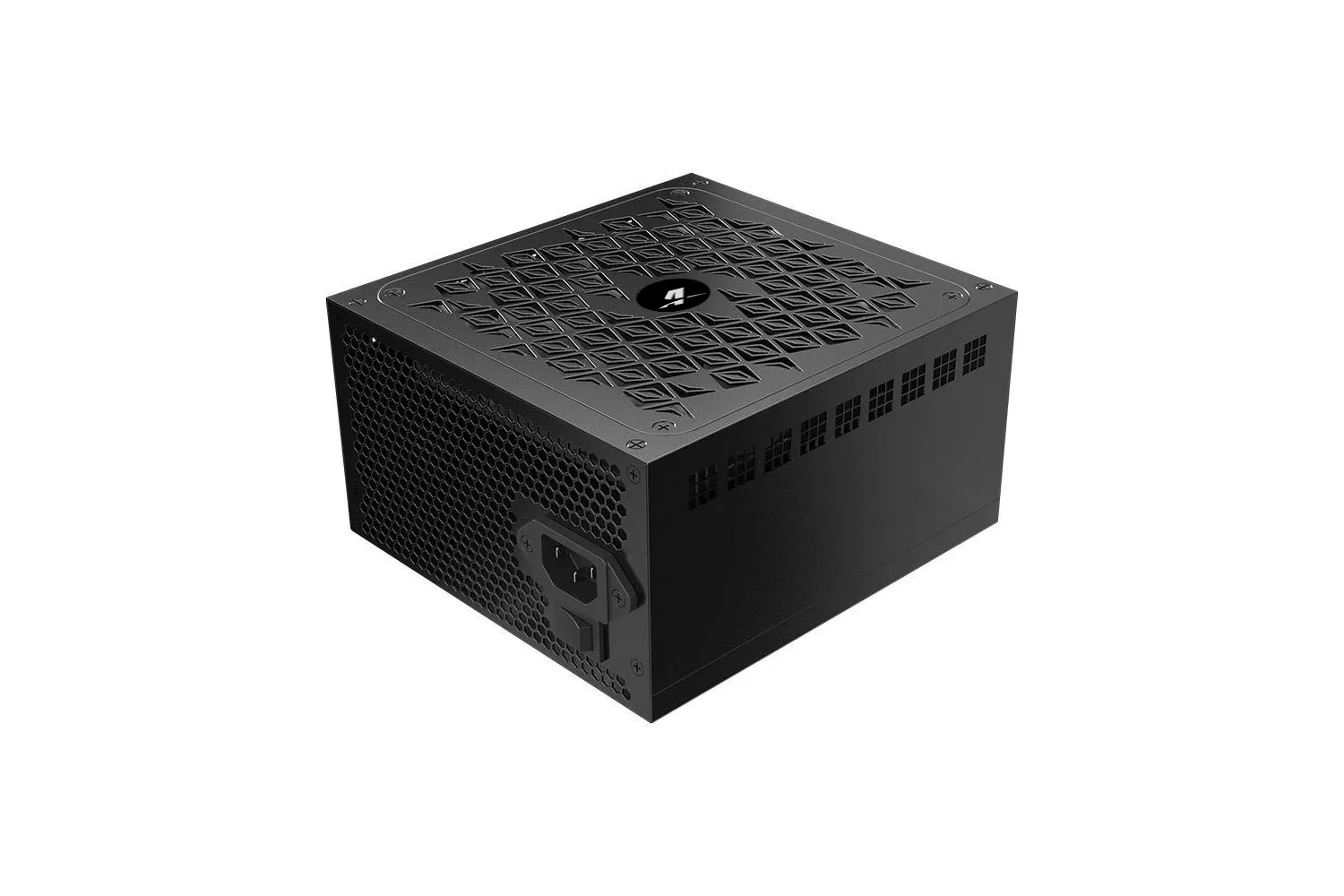

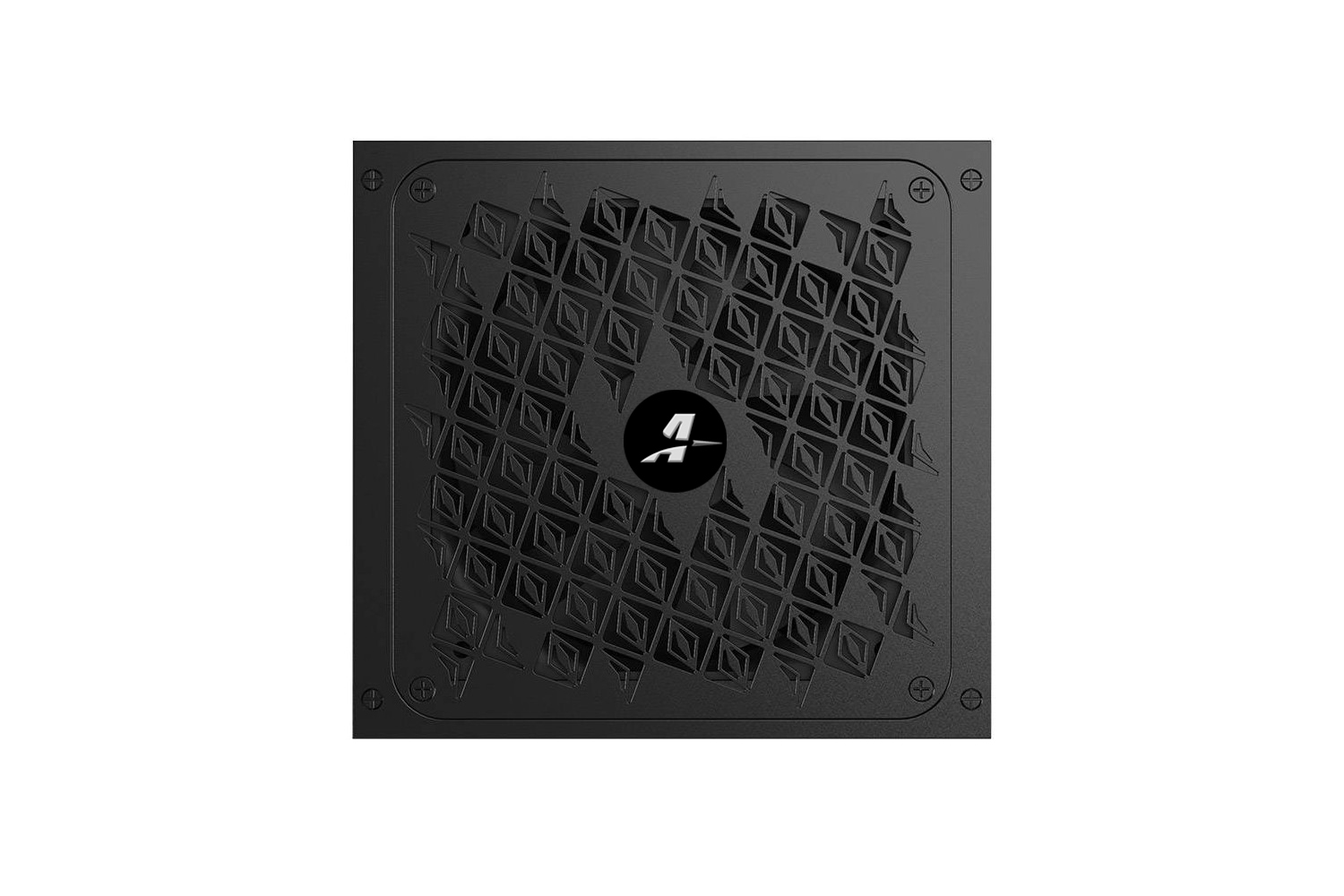

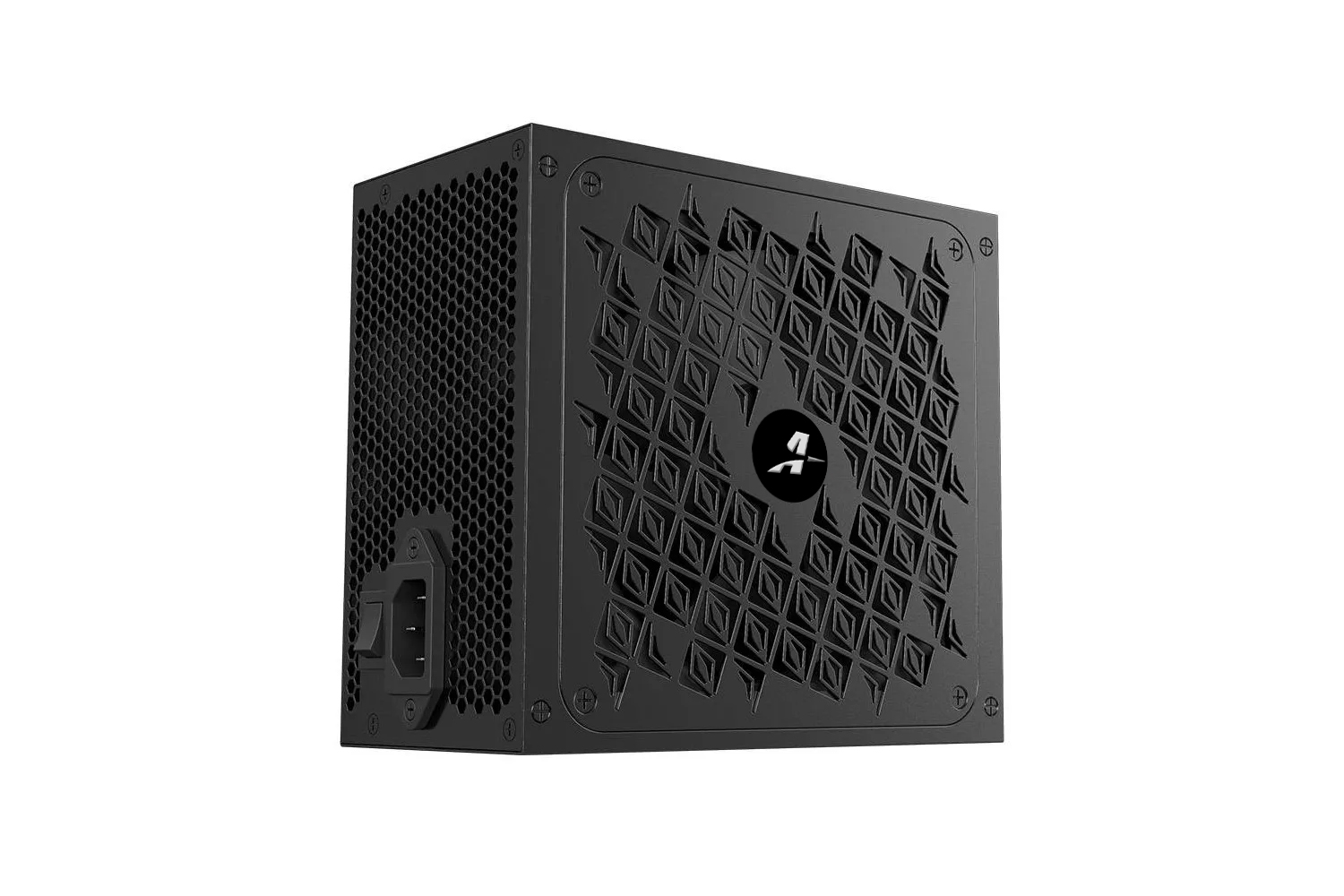

SCUTUM X 850W》850W, 80 Plus Bronze Certified, Fully Modular Power Supply
¥
Fully modular, so you only connect the cables your system needs.
Triple EPS12V connectors for full compatibility with modern graphics cards and motherboards.
A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load.
Zero RPM fan mode for near-silent operation at low to medium loads.
Industrial-grade, 105°C-rated capacitors deliver solid electrical performance and reliability.
Fully modular, so you only connect the cables your system needs.
Triple EPS12V connectors for full compatibility with modern graphics cards and motherboards.
A 140mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load.
Zero RPM fan mode for near-silent operation at low to medium loads.
Industrial-grade, 105°C-rated capacitors deliver solid electrical performance and reliability.
|
MODEL
|
SCUTUM X 850W
|
|
Dimensions
|
153mm x 81mm x 160mm
|
|
Format
|
ATX
|
|
Weight
|
1.65Kg
|
|
Ports and interfaces
|
Power supply for motherboard: 20+4 pin ATX, Length 550mm
|
|
EPS power connector (8-pin), Length 680mm
|
|
PCI Express power connectors (6+2 pin): 2, Length 500mm
|
|
SATA power connectors: 5, Length 450mm
|
|
Power connectors (4 pin) peripherals (Molex): 2, Length 450mm
|
|
Additional S4P connector (FLOPPY)
|
|
Wiring Type
|
Full Modular
|
|
Protections
|
Over Voltage (OVP), Short Circuit (SCP), Under Voltage (UVP), Over Voltage (OPP)
|
|
80 PLUS Certification
|
80+ Bronze (85% Efficiency)
|
|
Cooling
|
Fan diameter: 14 cm
|
|
Number of fans: 1 Fan
|
|
Fan Location: Top
|
|
Cooling Type: Active
|
|
Included Contents
|
SCUTUM X (1)
|
|
QR Manual (1)
|
|
Power cable (1)
|
|
Installation screws (4)
|
